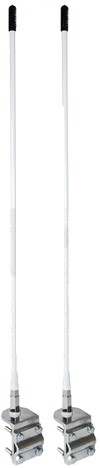

The TTL-3-PL is an advanced mobile antenna, designed for the standard 40 27MHz channels. Available in white, this antenna offers both functionality and aesthetics.
Features:
- Top-loaded / 3/4 ? antenna: This antenna is designed as a top-loaded 3/4 wavelength antenna, which contributes to improved performance and range.
- 1000 Watt peak power: With a peak power of 1000 Watts, the TTL-3-PL delivers powerful performance for optimal communication.
- Trim-to-Tune tuning: The antenna is tunable between 26 and 29 MHz, allowing you to achieve the best tuning for your situation.
- Exclusive design: Thanks to the VibraSorb and Super Flex anti-breakage design, this antenna is resistant to shock and vibration, extending its lifespan.
- VSWR of <1.5:1: This guarantees excellent efficiency across all 40 channels. Impedance and polarization: The antenna has a 50-ohm impedance and linear vertical polarization for optimal signal transmission.
- Robust materials: Made of high-quality fiberglass, this antenna offers durability and reliability.
- Height: At 900 mm (35.6 in) tall, the TTL-3-PL is compact yet powerful.
- Mounting type: Suitable for 3/8" female (stud) mounting, which simplifies installation.

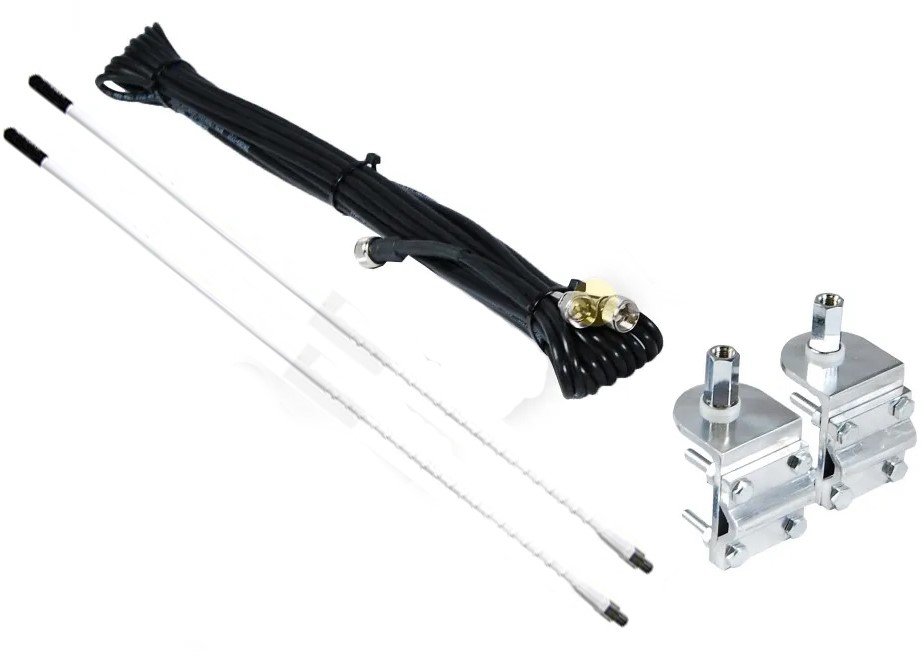

- The antenna comes with a 550 cm (19.7 ft) coaxial cable and a PL-259 (UHF-Male) connector, so you can get started right away.
Adjustment information:
- Remove the antenna cap.
- Remove the antenna foil until the wire coil is visible.
- Carefully pull out the wire, trim a small piece, and push it back.
- Replace the antenna cap.
- Measure the SWR and repeat the procedure until you achieve a good SWR.
